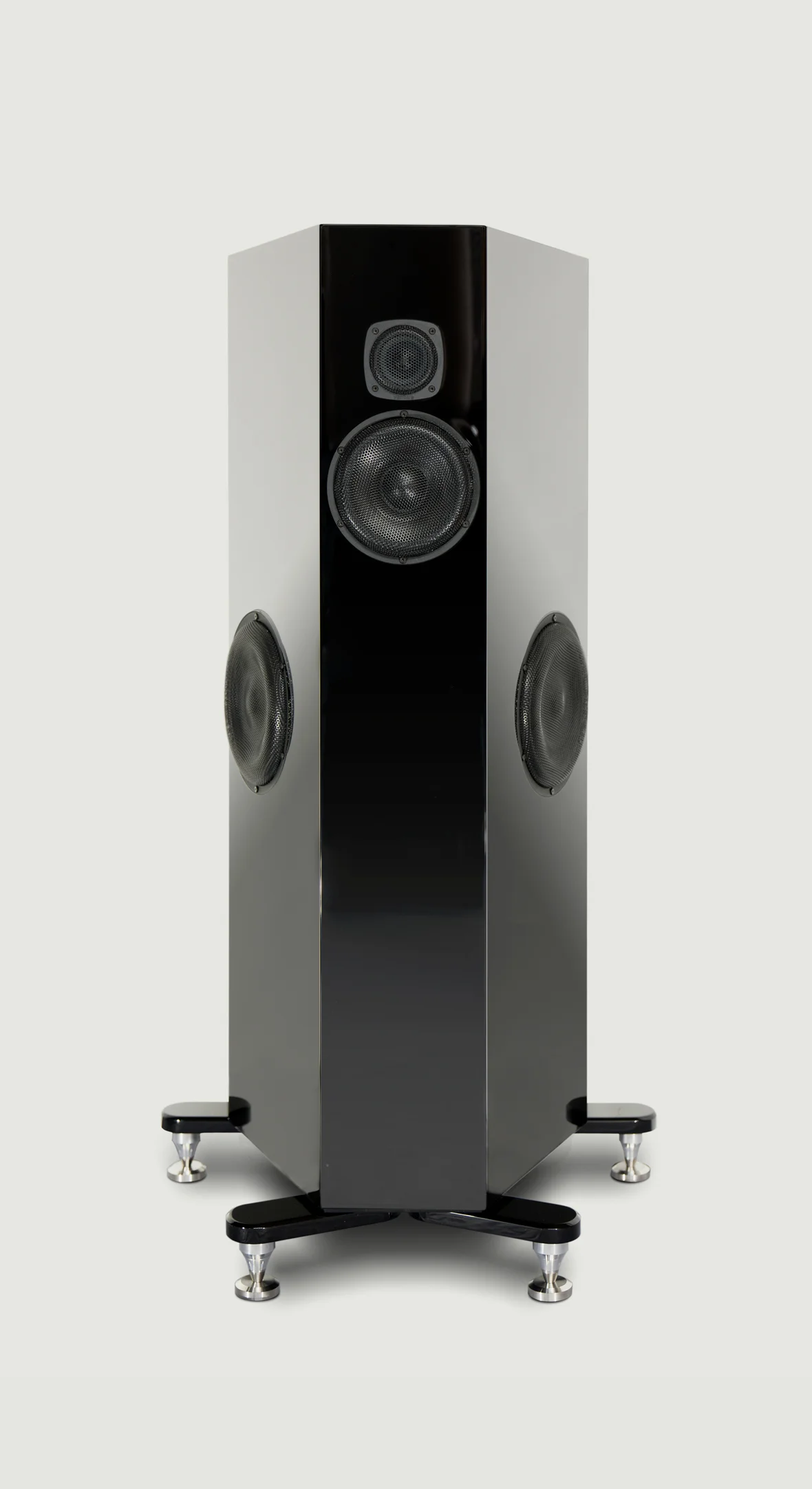

Quantum 8


This active speaker model was the first in the Quantum series and was successfully launched at the High End Munich Show 2016, IHEAC 2016 in Jakarta, Indonesia and TAVES 2016 in Toronto, Canada.


Black Polyester High Gloss mirror finish

Black Polyester High Gloss mirror finish

Elm Burl High Gloss

Elm Burl High Gloss



Cabinet and drivers


The Quantum 8 consist of one 2” Beryllium tweeter, one 6.5” AGC Midrange and two 8.5” AGC Woofers.

The cabinet is finished with the same 1.3 mm thick, hand polished, mirror high gloss finish polyester lacquer. It comes also in a variety of Premium veneer of Black Polyester, Sapele Pomele and the luxury Elm Burl.

Specifications

  • Design Principle: 3-Way Digitally controlled Active Speaker

  • DSP: SHARC DSP @300 MHz

  • Frequency Response: 25 - 40,000 Hz / - 6 dB

  • Maximum SPL: 115 dB / m

  • Total Amplifier Power: 2500 Watts class D

  • Amplifier Channels: 3

  • Analog Input: Balanced

  • Digital Input: AES

  • Tweeter: One 2” AGC Tweeter

  • Midrange: One 6.5” AGC Midrange

  • Woofer: Two 8.5” AGC Woofers

  • Wiring: Venture cables

  • Dimensions:H-127 x W-50 x D-45 cm / H-50 x W-19.7 x D-17.7 Inches

  • Weight: 77 kgs / 170 lbs

  • Finish: Black Polyester High Gloss Mirror finish - Elm Burl High Gloss - Sapele Pomele High Gloss



*In keeping with our Live Performance Satisfaction Philosophy and to improve on and manufacture more effective products,Venture reserves the rights to change product specifications and materials without prior notice.
